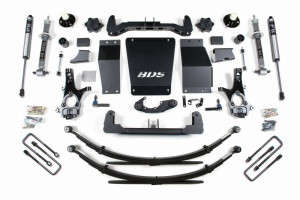

BDS Suspension 6" Lift Kit | Aluminum/Stamped Steel Control Arm| Leaf Springs | FOX 2.0 Performance Series Shocks (14-18 Chevy Silverado/GMC Sierra 1500 | 4WD)

Be the first to review this product

Arrow Filled Caret Down

$2677.01


ESTIMATED DELIVERY: Tuesday, Oct 07
to the lower 48

Starting At $130/mo with

Part Number

BDS718FS

Details

The BDS 6-inch lift kit is an amazing upgrade for your Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes full length replacement strut shocks high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops bump stop extensions brake line brackets CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts brake line brackets and precision tuned FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features

  • High clearance crossmember design maximizes ground clearance
  • BDS Suspension offers a huge assortment of truck, SUV and Jeep lift kits and truck accessories
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Leaf Springs: Eliminates any need for a lift block, Reduces axle wrap and creates a more controlled and stable feel, Multi-leaf progressive design for a smooth ride, Maintains factory payload weight ratings.
  • FOX 2.0 Performance Series: 2-inch Impact extruded aluminum body, Internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, Race-developed high-flow piston design, Application-specific valving to maximize performance, Long-lasting clear anodized finish

Notes

  • Strut compressor required
  • Requires frame bracket modification
  • Requires differential modification to clear electric power steering
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
  • If choosing the 5" rear block option add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
  • All wheel drive models require drive line modification.

Fitment

**This item fits a ton of vehicles, so let's check to see if it fits yours. Don't see it on the list above? No worries, type your vehicle in the search bar above to see the full list of compatible vehicles.**
